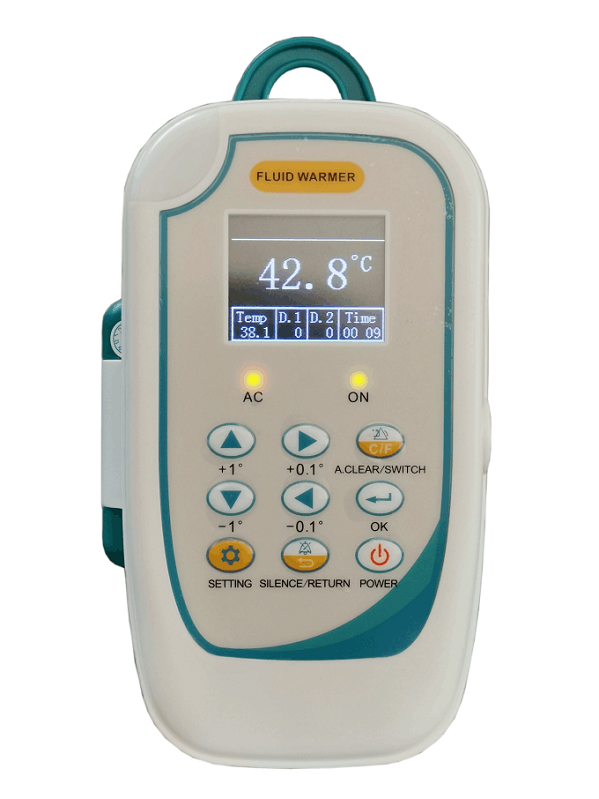

Fluid warmer P-fw1

Product Name:

Fluid warmer

Model No. :

P-fw1

Product Description:

Fluid warmer is a device heating fluid inside infusion set /blood transfusion set based on thermal transfer principle. It accepts various brand of infusion set/blood transfusion set.

Features：

1. Compact and light weight

2. Colorful LCD screen with detailed info

3. Double groove heating for two infusion sets

4. Optional working with drop sensor

5. Fast heating, 3~5 minutes to reach the set temperature

6. With over-temperature & low temperature alarm

7. Cut off the power supply automatically when overheat of fluid

8. Two flexible installations: with hanger or pole clamp

9. The pole clamp has hidden function, saving space

Basic Parameter ：

1. Tube size : 3~4.5mm

2. Heating range : 30 ℃ ~ 50 ℃, with increment of 1℃ or 0.1 ℃

3. Accuracy : ≤±0.5℃

4. Classification : Class I / type B

5. Power : AC 100-240V, 50Hz/60Hz

6. Net weight : 550g

7. Packing dimension : 22*19*12cm
